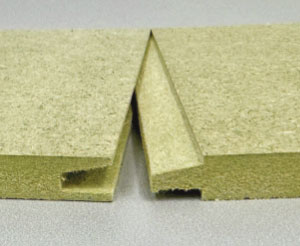

9mm T&G Board

The Isocheck 9mm T&G Boards have been developed as a suitable overlay for selected Isocheck and Monodeck acoustic matting systems.

A 9mm moisture resistant medium density fibreboard intended as a means of stabilising the floor surface, prior to installation of certain finishes.

For a wide variety of floor finishes installed above selected Isocheck and Monodeck acoustic matting systems.

View more technical information and downloads

Typically to be used beneath bonded carpet (commercial & domestic), carpet tiles, laminate, vinyl, overlay to existing uneven floors and certain engineered timber floor finishes.

Overall size: 1200mm x 600mm x 9mm
Weight: 5.0kg per sheet

9mm T&G Board, supplied by Isomass Ltd. Unit 14 Papworth Business Park, Stirling Way, Papworth Everard, Cambridgeshire CB23 3GY and installed in accordance with manufacturer’s instructions / recommendations.

Full installation instructions for 9mm T&G Board is available on request.

9mm T&G Board product data sheet

DOWNLOAD
  • Example 1: Bonded layer of (15mm) engineered wooden flooring planks, tongued & grooved.
  • Bonded layer of Isocheck 9mm T&G boards.
  • Monodeck Mat 15 over floorboards.
  • 200mm x 70mm joists @ 450mm centres with100mm 45kg/m3 insulation between joists.
  • Isocheck Isoblock & Isobar system @400mm centres.
  • 20kg/m2 double boarded 25mm o/a plasterboard.
  • Example 2: Bonded layer of (15mm) engineered chevron/parquet-style flooring, tongued & grooved.
  • Bonded layer of Isocheck 9mm T&G boards.
  • Isocheck 15T over floorboards.
  • 200mm x 70mm joists @450mm centres with100mm 45kg/m3 insulation between joists.
  • Isocheck Isoblock & Isobar system @400mm centres.
  • 20kg/m2 double boarded 25mm o/a plasterboard.
